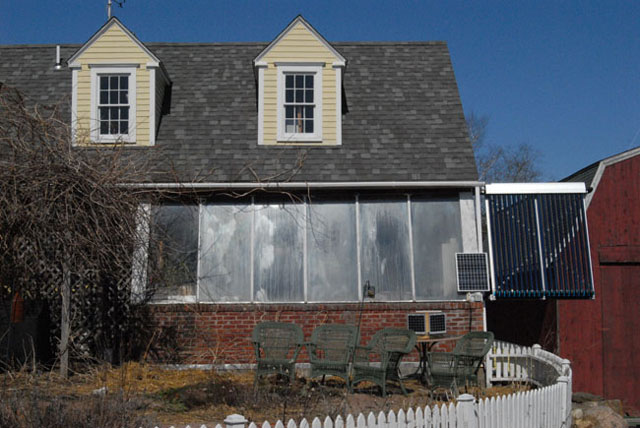

![20 tube solar collector](imgs/20tubecollector.jpg)
First setup with one 20 tube collector, 40w PV and 3-10w adjustable box on table

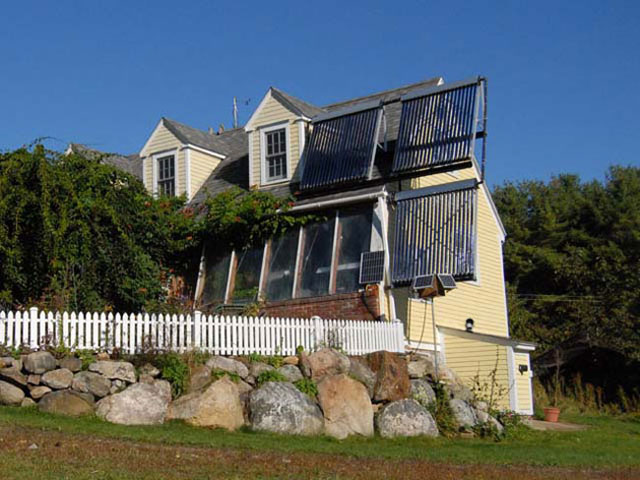

![60 tube solar collector](imgs/houselg.jpg)
Final 60 tube array and location of 3-10w PV box

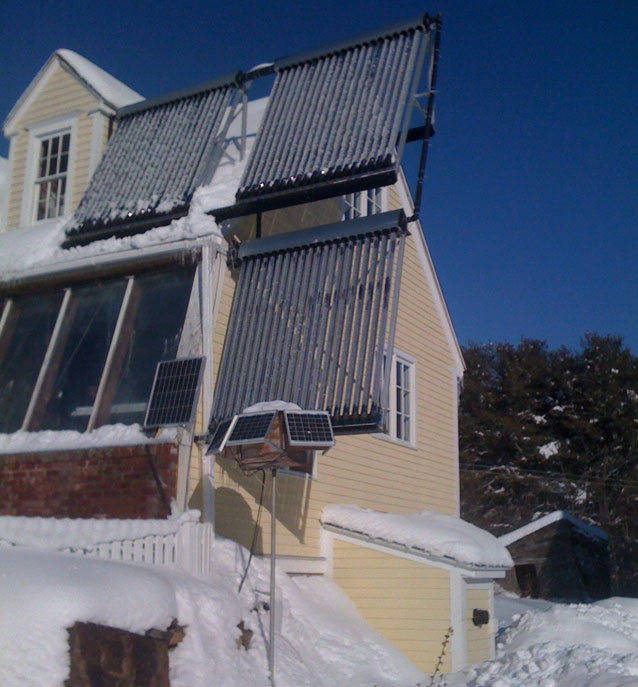

![Solar hot water collector icing](imgs/collectorice.jpg)
Collectors added 93,855 btu'S to storage tank, covered in ice and snow, on January 21, 2010

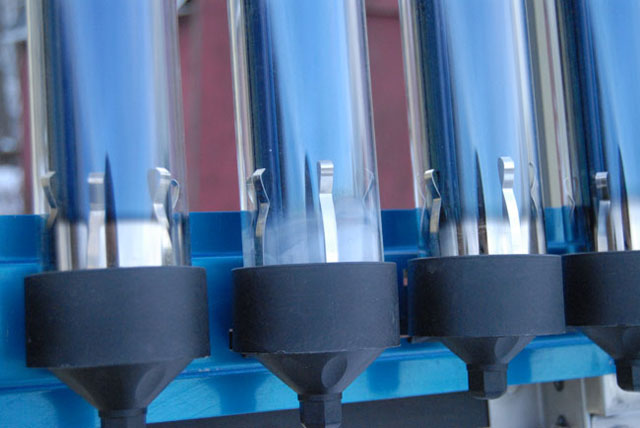

![bad evacuated tube](imgs/badtube.jpg)
white cloud at bottom of tube means it has lost its vacuum

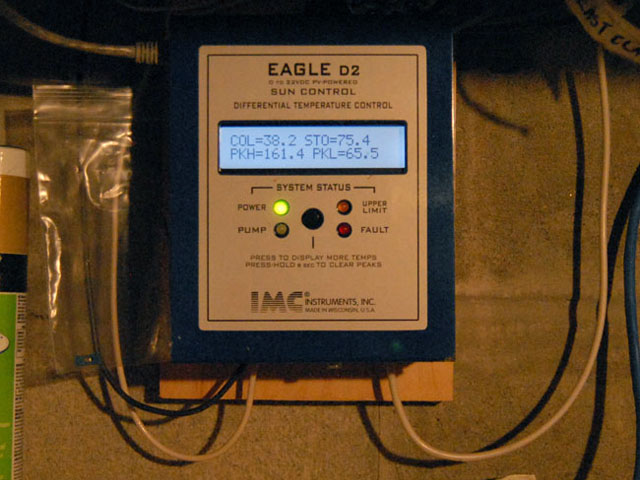

![MIC eagle2 pv differential controller](imgs/eagle2.jpg)
eagle2 controller (at night) collector at 38.2

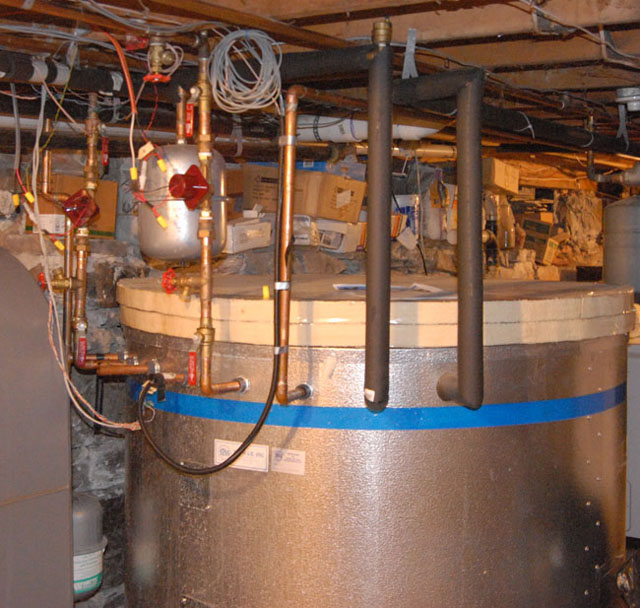

![stss tank and plumbing](imgs/tank.jpg)
328 gallon stss tank and plumbing layout

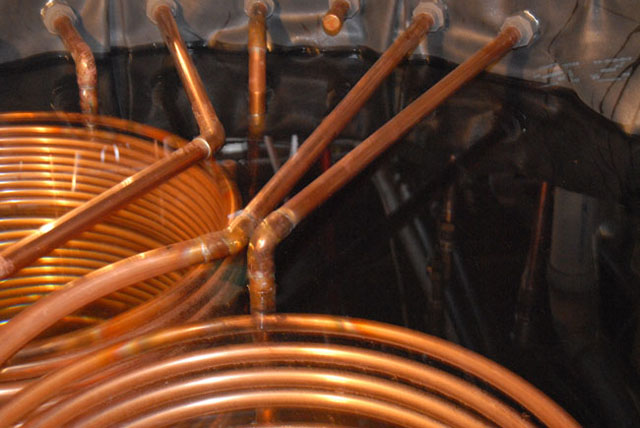

![stss heat exchangers](imgs/exchangers.jpg)
stss exchangers

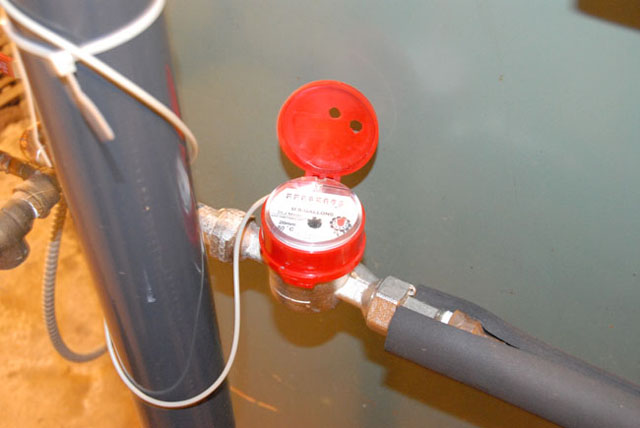

![dlj flow meter](imgs/flowmeter.jpg)
dlj flowmeter

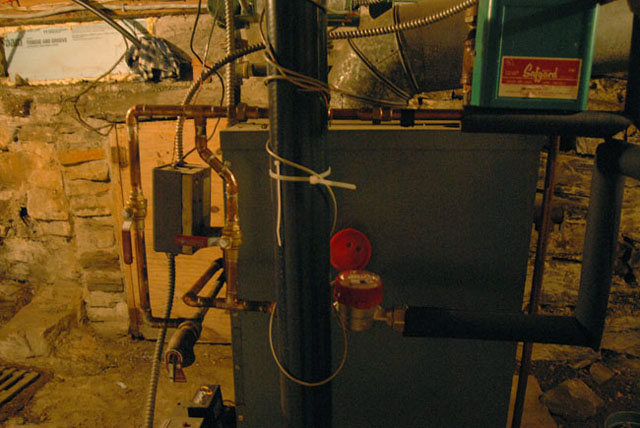

![tankless water heater bypass plumbing](imgs/bypass.jpg)
tankless hot water heater bypass
|
